Slim Wall Bracket for 60-120' LCD LED TV Black
TECHLY
Web N°: 39-0435
$199.95
Slim Wall Bracket for 60-120' LCD LED TV Black
TECHLY
Web N°: 39-0435
$199.95
Description
- Compact design bracket, ideal for large TVs
- Supports up to 120 kg of weight
- Robust mounting plate and tilt system that allows +/- 5° viewing angle adjustment
- Extendable arm up to 703 mm and possibility of rotation of 120°
- Installation and removal of the TV is simplified thanks to a unique quick release mechanism
- Tool-less tilt provides optimal viewing angles
- Integrated cable management creates a clean look
Details and Specifications
Features
- Universal bracket for slim TVs 60-120"
- Supports VESA up to 900x600
- Supports flat and curved TVs
- Maximum weight supported: 120 kg
Technical specifications
- Material: steel
- Bracket arm and panel in 2 mm cold rolled sheet
- Wall plate in 3 mm sheet metal
- Pipe dimensions: 50x25x1.5 mm square steel pipe
- VESA compatibility: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,800x600,900x600
- Tilt Range: +5°~-15°
- Rotation range: +60°~-60°
- Screen level: +5°~-5°
- Freely tiltable screen
- Installation: solid wall, double stud (406mm/450mm/600mm)
- Panel type: detachable panel
- Wall plate type: fixed wall plate
- Includes bubble level
- Powder surface finish
- Color: fine textured black

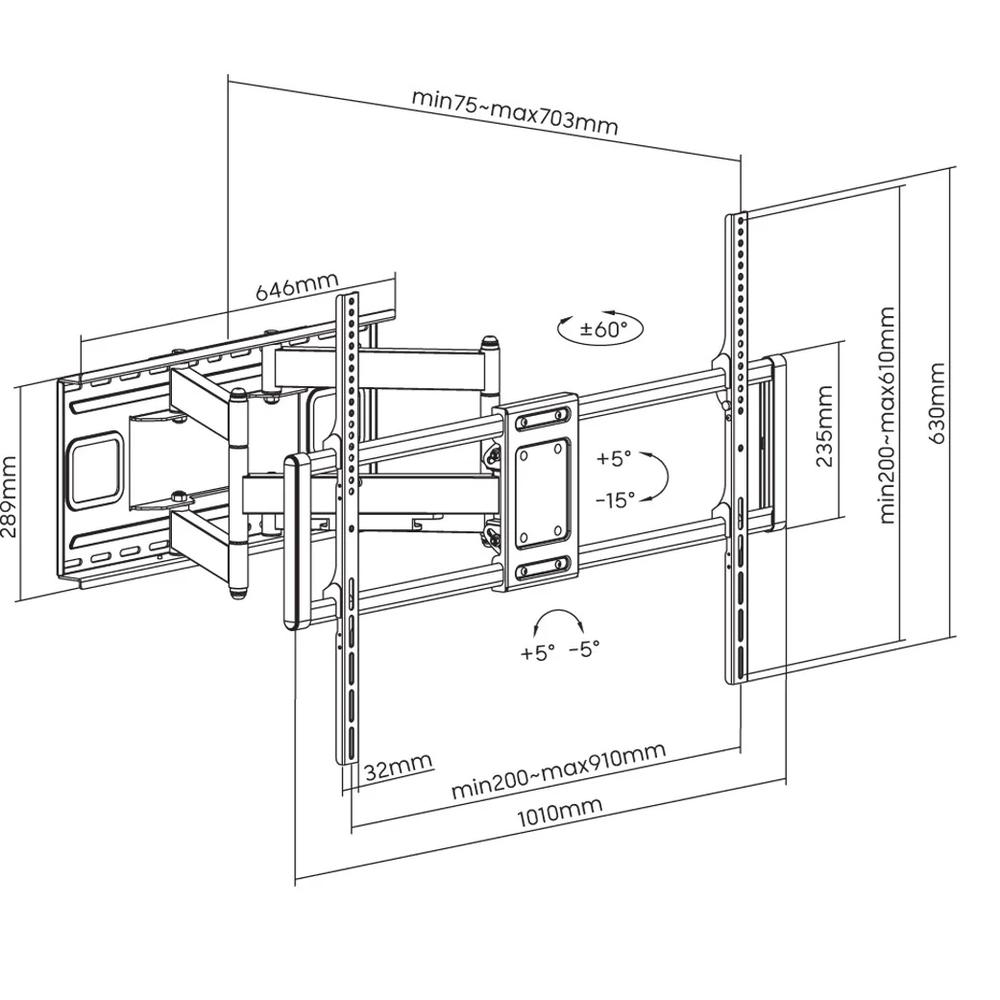

Size
- Width: 1010mm
- Height: 630mm
- Profile: 75~703mm
Box Contents
- Wall support for TV 60-120"
- Mounting material
- Leveling bubble
- Instruction manual
