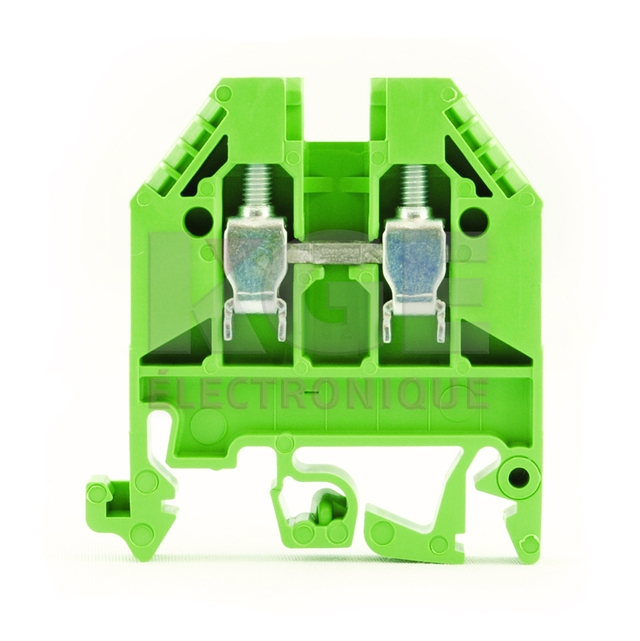

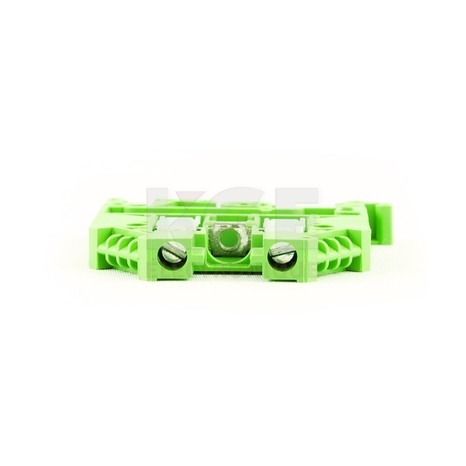

Green WK4 Terminal

Description

Feed-through DIN rail terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color green.

Details and Specifications

• Nominal cross section: 4mm.
• Colour: Green.
• Number of levels: 1.
• Number of clamp positions per level: 2.
• Width/grid dimension: 6mm.
• Insulating housing: PA666.
• Inflammability class of insulation material acc. with UL94: V0.
• Explosion-tested.
• Mounting method: DIN rail (top hat rail)/G-rail
• Terminal blocks for electrical installations.
• Rated current: 32A.
• Rated voltage: 800V.
• Rated impulse voltage: 8kV.
• Pollution degree: 3.
• Closing plate required.
• Length: 44.5mm.
• Type of insulation material: Thermoplastic.
• Connection type: Screw connection.
• Minimum cross section solid: 0.5mm.
• Maximum cross section solid: 6mm.
• Minimum cross section fine stranded: 0.5mm.
• Maximum cross section fine stranded: 4mm.
• Wire strip length: 9mm.
• Torque conductor mounting: 0.5Nm.
• Cross section UL: 22-10 AWG.
• Voltage UL: 600V.
• Current factory wiring: 35A.
• Current field wiring: 30A.
• Cross section CSA: 22-10 AWG.
• Voltage CSA: 600V.
• Current CSA: 40A.
