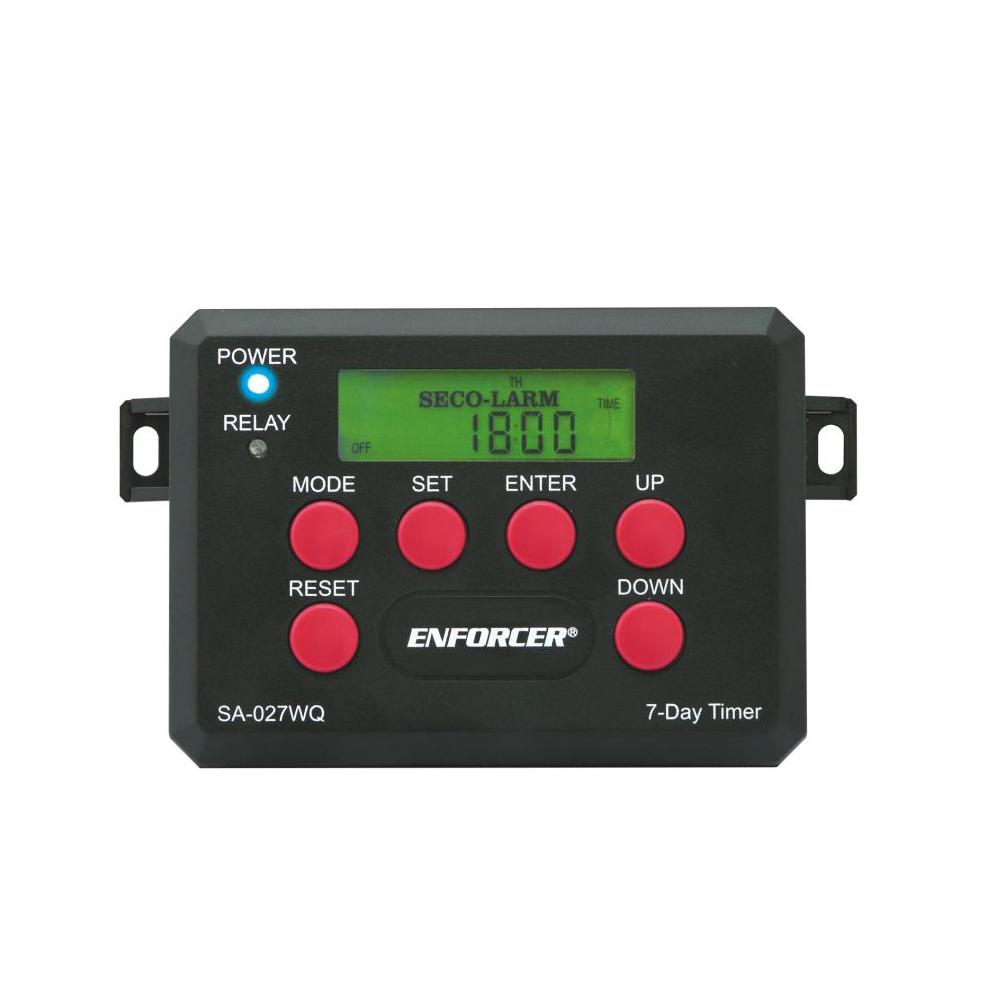

Programmable timer 7 days SA-027WQ
ENFORCER
Web N°: 14-0034
$99.95
Programmable timer 7 days SA-027WQ
Out of stock

Programmable timer 7 days SA-027WQ

ENFORCER
Web N°: 14-0034
$99.95

This product is out of stock.


Description

  • Enclosed terminals for a safer installation.
  • 12~24 VAC/VDC Operation.
  • Up to 60 programmable events.
  • Holiday function (up to 99 days).
  • Easy-to-read backlit LCD.
  • Adjustable output time.
  • Programmable security code.
  • 12 or 24-Hour clock format.
  • 16 Schedules including daily, weekly, weekends, etc.
  • Memory saved if power fails.
  • Form C relay output (10A@120VAC/28VDC).
  • Egress input terminal.
  • Mode selection button for manual relay operation.

Details and Specifications

Specifications:

  • Operating voltage: 12~24 VAC/VDC.
  • Current draw:
    • Standby: 15mA@12VDC.
    • Active: 70mA@12VDC 10A@120VAC/28VDC.
  • Backup battery: 1 x CR-2016 (included).
  • Weight: 4.6-oz (130g).
  • Dimensions: 4-3/16"x3-1/16"x1-1/4" (107x78x31 mm).
Download the document (PDF)
