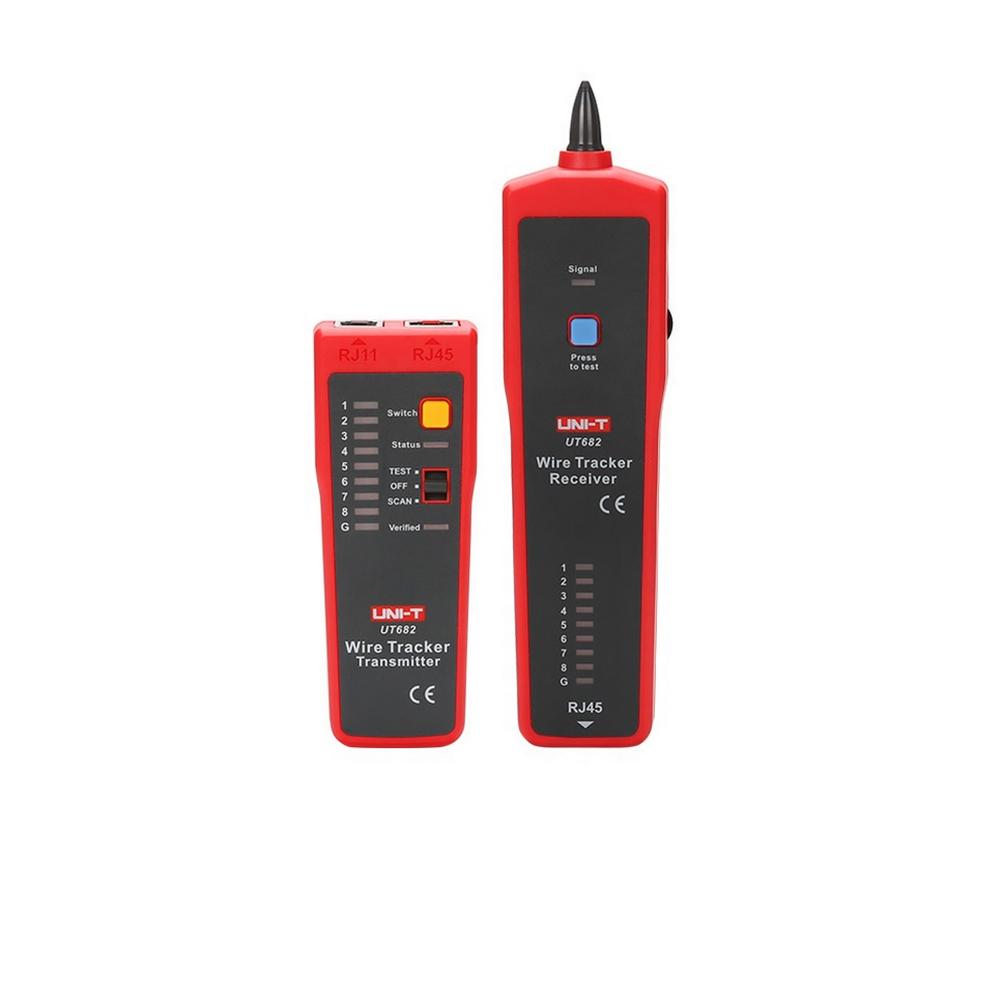

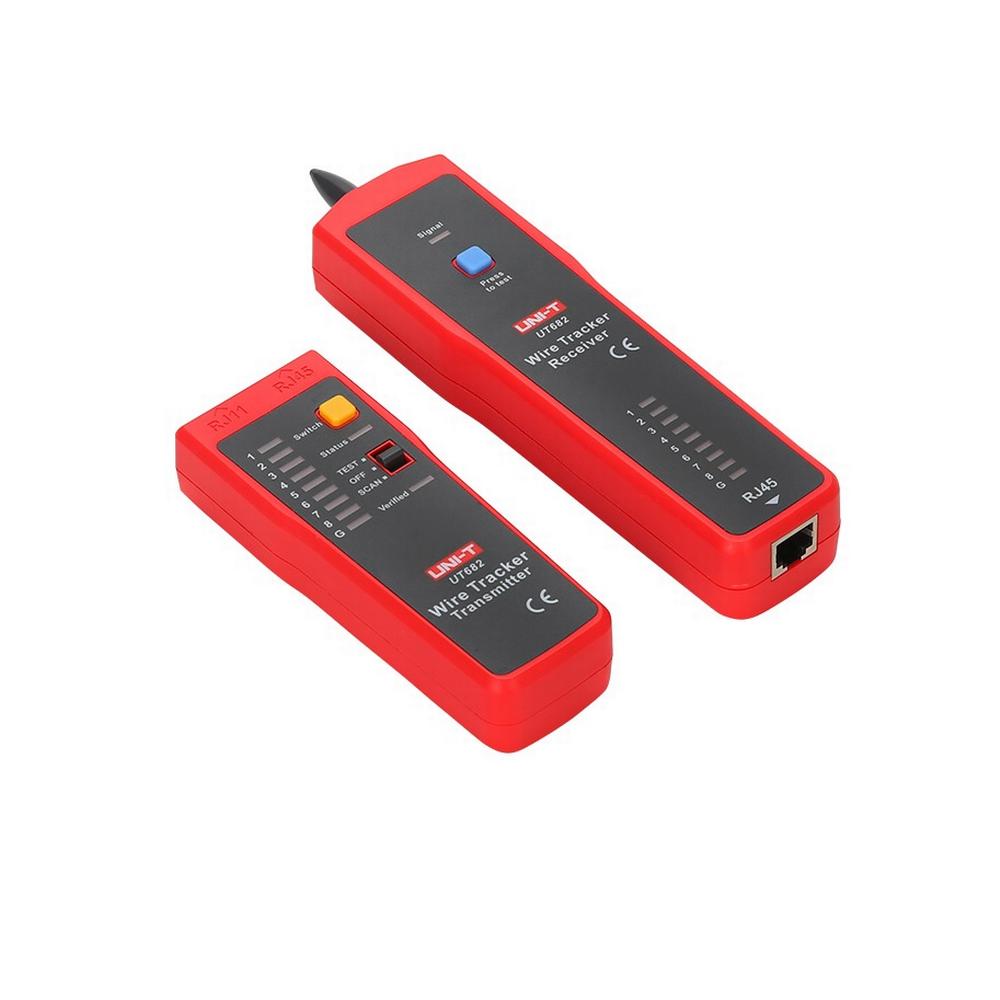

Wire Tracker UT682

UNI-T

Web N°: 16-0101

$59.95

Description

Features of UT682 Series Wire Tracker/Tone and Probe

Certifications: CE, UKCA

? Telephone/ethernet/power cable tracking

? DC level test, can check voltage level and polarity

? Ethernet cable wiring sequence verification

? Fast open/short circuit test

? Volume adjustment

? Headset connection for noisy environment

? Dual measurement cycle mode

? Low battery indication

Details and Specifications

Specifications	Range		UT682
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire
	Indication light for signal strength		v
	Live switchboard wire tracing		v
	Switchboard wire tracing distance		=100m
	Telephone lines tracking distance		=3000m
	Unshielded cables tracking distance		=320m
	Shielded cables tracking distance		=320m
	Open and short circuit test		v
	Polarity indication for telelphone lines	DCV function, range: ±(5V~52V)	v
	Telephone lines and LAN cables distinction	Jacks distinction	v
	Broken wire tracking		v
	Transmitter output voltage		=12V peak-peak
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	v
	Max transmitter working current		25mA
	Headphone jack for receiver		v
	Receiver power supply	9V battery	v
	Max receiver standby current	~10mA	v
	Max receiver operating current	<40mA (AC, RMS)	v
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	v
	Line sequence measuring speed	Fast and slow selectable	v
	LAN cable: shielded/unshielded indication		v
Transmitter input voltage protection			52V DC
Operating environment	Operating temperature: 0~40?; Storage temperature: -10~50? Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: =2000m
General Characterisitics
Product color	Red and grey
Product net weight	UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size	UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories	9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
