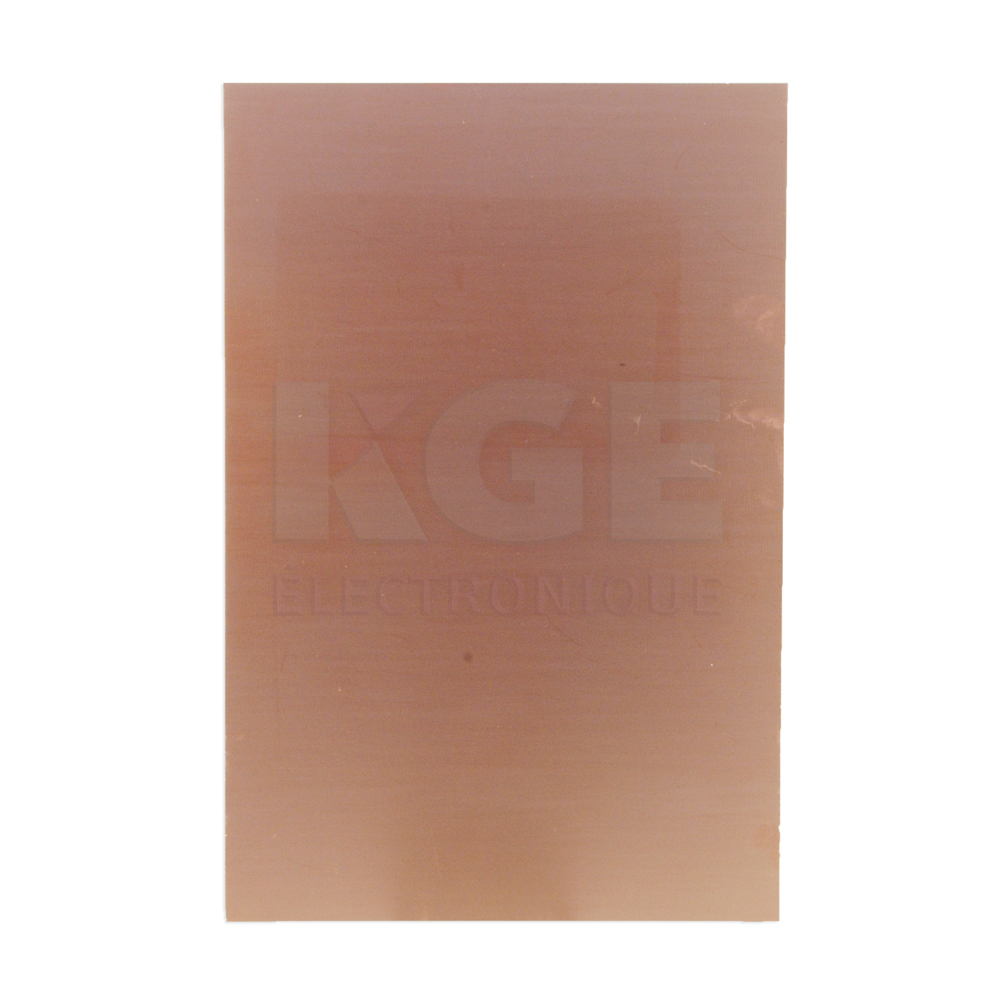

588 Copper Clad Board - 6" x 9"
MG CHEMICALS
Web N°: 36-0169
$23.95
588 Copper Clad Board - 6" x 9"
MG CHEMICALS
Web N°: 36-0169
$23.95
Description
1 ounce copper per square foot This flame retardant laminate is translucent in color and made of continuous woven glass cloth impregnated with epoxy resin. The copper on 1 ounce boards is 1.34 mil thick (0.0341 mm, 34.1 microns). The boards are made of FR4 which is a flame retardant version of G-10 material. Developed specifically for the circuit processing industries' requirements.
Details and Specifications
- Complies with UL #E214381.
- Easy Cutting.
- FR4 1/32" (0.80mm), single sided.
- Size: 6" x 9" (152 x 228 mm).
