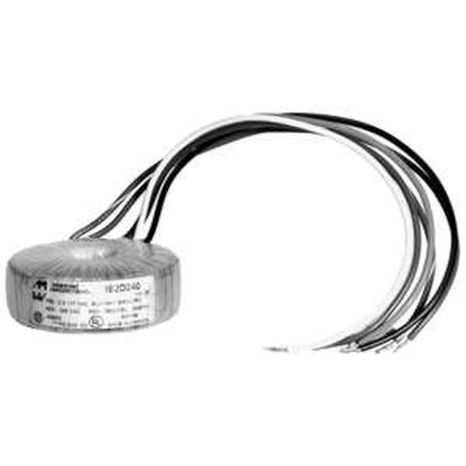

182D110 - Toroidal L.V. - Chassis Mount - 15VA, Dual Secondary, Open Centre

Description

• Low profile, lightweight, cool running
  - due to high efficiency toroidal design
• Dual 117/234 VAC primary, 50/60 Hz. operation
• Units are designed to have all windings engaged.
• Center single hole mounting
• Supplied with two rubber insulating pads, one metal centering washer and all mounting hardware
• 8" long flexible leads
• Due to toroid design
  - no electrostatic shield required
• Hi-Pot test of 4,000V RMS between primary & secondary
• CSA certified to C22.2 #66
  - CSA file #209651
• UL recognized to UL506
• UL file #E207860 CE certified to IEC950
• VAC Secondary RMS (Series): 220V C.T. @ 68ma
• VAC Secondary RMS (Parallel): 110V @ 136ma
• Outside diameter: 2.7"
• Height: 1.25"
• Included mounting hardware size: 8-32 x 1 1/2"
• Top Steel Mounting Washer with Top & Bottom Rubber Washer
• Weight: 0.76 lbs.
