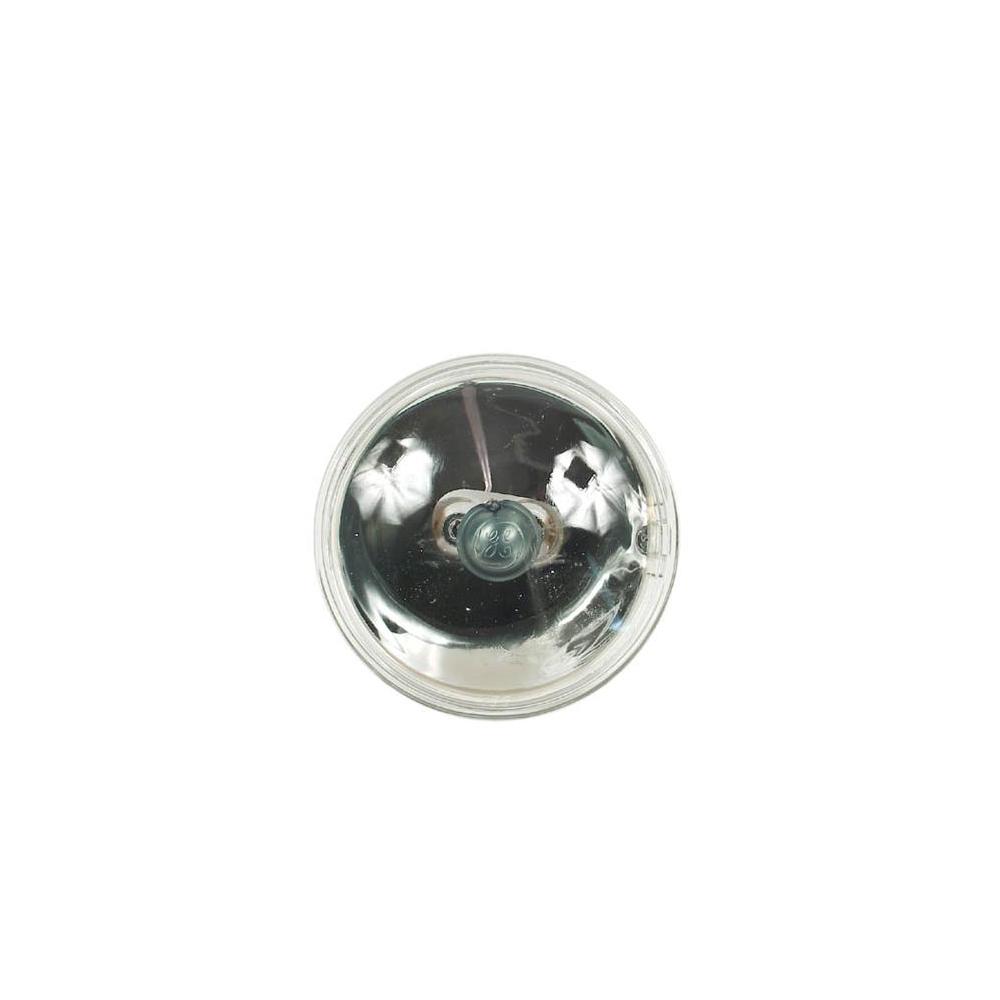

24673 – 4515 GE PAR36 - Pin Spot light

Description

GENERAL CHARACTERISTICS

• Lamp type: Sealed Beam - PAR
• Bulb: PAR36
• Base: Screw Terminals
• Primary application: Pin Spot
• Filament: C-6
• Product Technology: Incandescent
• Rated Life (NOM): 100 hrs

PHOTOMETRIC CHARACTERISTICS

• Beam Spread - Horizontal: 5.0 - 10.0 %
• Beam Spread - Vertical: 5.0 - 10.0 %
• Max. Beam Candlepower (MBCP) (MAX): 55,000

ELECTRICAL CHARACTERISTICS

• Wattage (NOM): 30.0
• Voltage (NOM): 6.4

DIMENSIONS

• Maximum Overall Length (MOL) (NOM): 2.7500 in (69.8 mm)
• Bulb Diameter (DIA) (NOM): 4.5000 in (114.3 mm)
