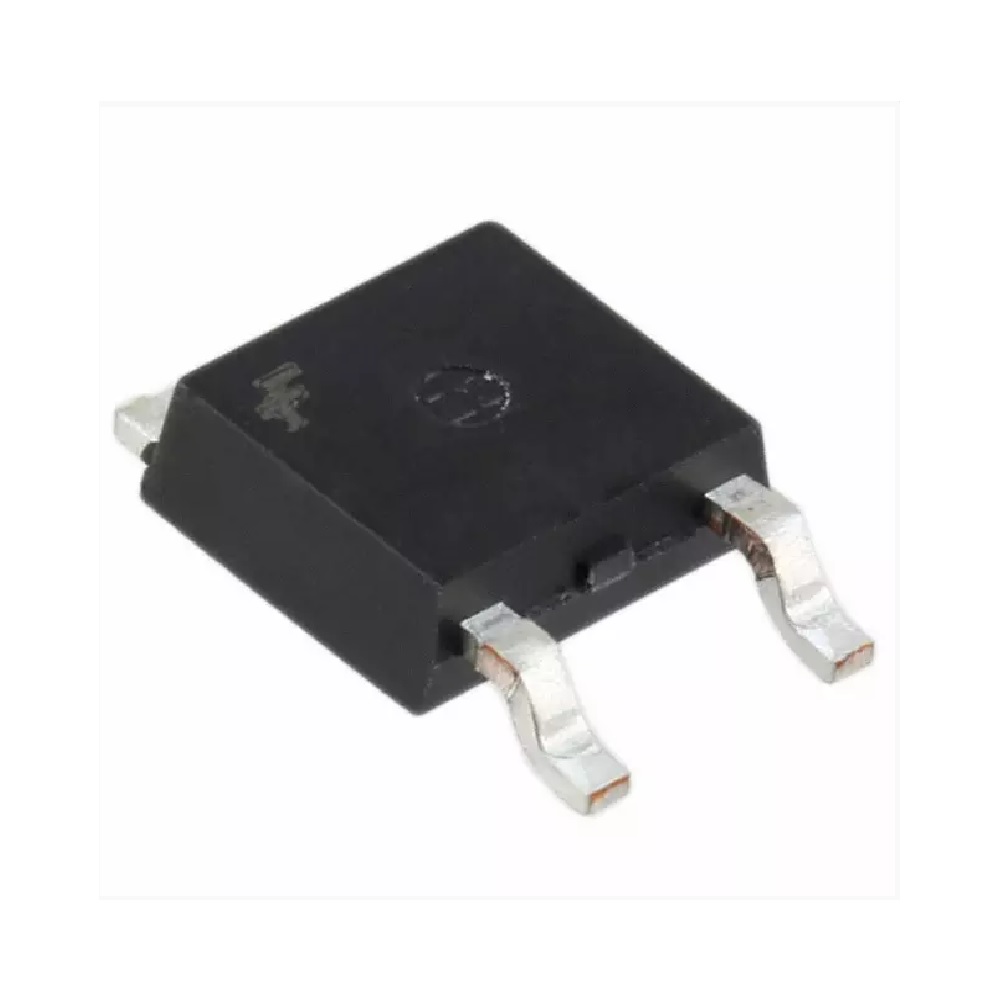

Mosfet N 30V 30A TO-252-3 (DPAK)
Web N° : 25-2097
2,50 $
Mosfet N 30V 30A TO-252-3 (DPAK)
Web N° : 25-2097
2,50 $
Description
- Manufacturer: onsemi
- Series: PowerTrench®
- Part Status: Obsolete
- FET Type: N Channel
- Technologies: MOSFET (metal oxide)
- Drain-to-source voltage (Vdss): 25 V
- Current - Drain continuous (Id) at 25°C: 35 A (Tc)
- Control voltage (Rds On max., Rds On min.): 4.5V, 10V
- Rds On (max.) at Id, Vgs: 14mOhms at 35A, 10V
- Vgs(th) (max.) at Id: 2.5V at 250µA
- Gate load (Qg) (max.) at Vgs: 18 nC @ 10 V
- Vgs (max.): ±20V
- Input capacitance (Ciss) (max.) at Vds: 845 pF @ 13 V
- Power dissipation (max.): 39W (Tc)
- Operating temperature: -55°C ~ 175°C (TJ)
- Mounting type: Surface mount
- Vendor box: TO-252AA
- Housing: TO-252-3, DPak (2 outputs + tab), SC-63
